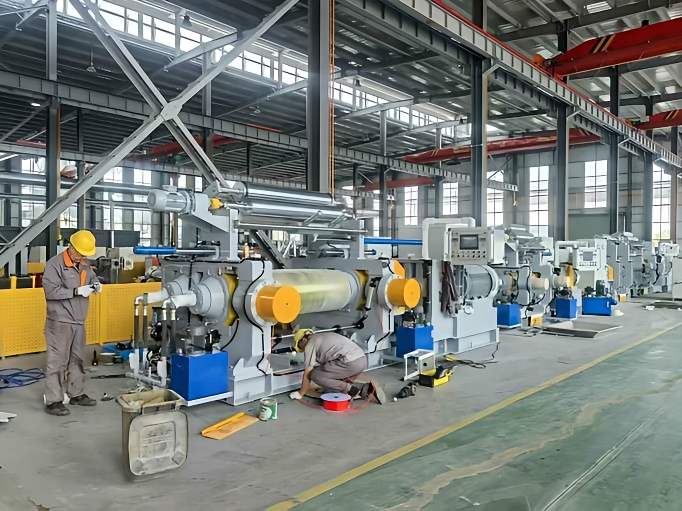

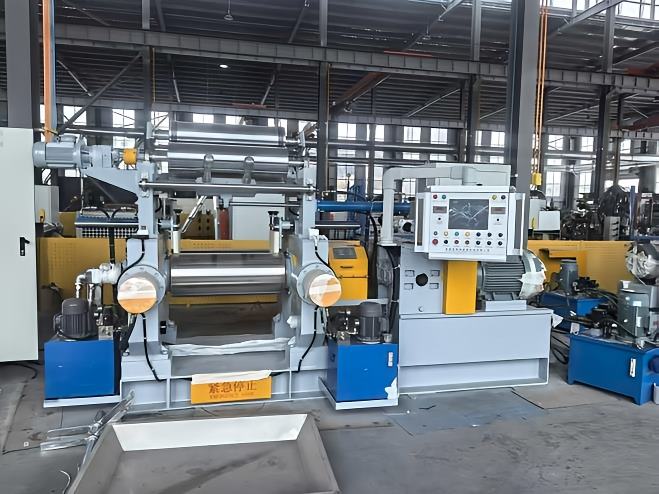

Rubber Mixing Mill is used for rubber&plastic mixing,sheeting.
Features for the rubber mixing mill machine:
• our rubber mill is optimized structure based on experiences of past dozens of years,with stable performance, easy to operate.
• There are varied speeds and fraction ratios available, which can satisfy most customers’ formula and processing requirements.
• Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.
• Chilled alloy cast iron roll is abrasion resistant with long service life.
• The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
• Perfect emergency stop device can ensure the safety of personnel and equipment.
• The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
• Stock pan is easy to clean up with dislodging device.
• Human nature designed operating system reduces labor intensity.
• Modular structure offers various structures for customers’ option.
• The flexible design system can satisfy customers’ special design requirements within the shortest time .
• A load test running of the finished rubber mixing mill will be made to the assembled equipment in our company to save debugging time for customers,making sure it 100% failure-free to reach customer’s factory.
Technical specification:
|
Model |
X(S)K-160 |
X(S)K -250 |
X(S)K -360 |
X(S)K -400 |
X(S)K -450 |
X(S)K -550 |
X(S)K-660 |
|
|
Diameter of rolls |
160 |
250 |
360 |
400 |
450 |
550 |
660 |
|
|
Working length of roll |
320 |
620 |
900 |
1000 |
1200 |
1500 |
2130 |
|
|
Working speed of front roll |
8.95 |
14.9 |
17.4 |
19.3 |
23.1 |
28.6 |
30 |
|
|
Fraction ratio of rolls |
1:1.35 |
1:1.1 |
1:1.27 |
1:1.27 |
1:1.27 |
1:1.29 |
1:1.05 |
|
|
Max.gap(mm) |
5 |
8 |
10 |
10 |
10 |
15 |
15 |
|
|
Nip regulating mode |
Manual |
Manual |
Manual |
Manual or Electric |
Manual or |
Manual or |
Electric |
|
|
Batch capacity(Kg) |
1-2 |
10-15 |
20-15 |
25-35 |
30-50 |
50-60 |
120-140 |
|
|
Motor |
Power(KW) |
5.5 |
15 |
30 |
45 |
55 |
90/110 |
180 |
|
Motor speed(r/m) |
1440 |
730 |
980 |
740 |
980 |
740 |
740 |
|
|
Reducer |
Full closed type hardened gear speed reducer |
|||||||
|
Reduction ratio |
43 |
35 |
49.7 |
38 |
47.2 |
35.6 |
126.2 |
|
|
Overall dimension (LxWxH:mm) |
1120x920 |
3400x1270 |
4140x1770 |
4490x1700 |
5570x1900 |
6290x2330 |
7500x |
|
|
Weight (kg) |
1100 |
4200 |
7600 |
9000 |
11500 |
20000 |
45000 |
|
