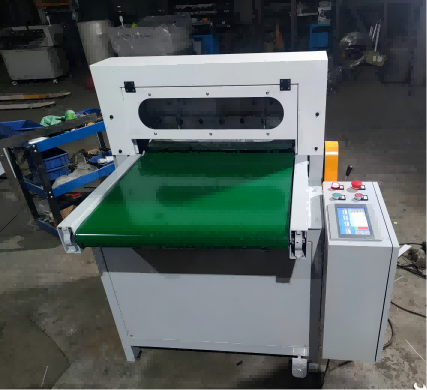

rubber strip cutting machine,PLC control,input the cutting width on the touch screen, then machine will execute the instruction to cut the right width as the order.
--- Rubber strip cutting machine with scale control system, input the weight required, then the scale send this order to PLC, the right weight of rubber blanks will be cut.
Description:
1.Our Rubber Strip Cutting Machine (kauçuk şerit kesme makinesi) is optimized in structure and easy to operate.With glass plates positioning in front make the operation more secure. Feeding platform is made of pure mirror stainless steel, truly beautiful appearance and guarantees safe production, high automation, easy operation and low noise and has a good safety device, automatic lift feed roller device is also a friendly design.
2.Feed roller of Rubber Strip Cutting Machine (Kauçuk DİLİMLEME MAKİNESİ) adopts high-precision dual-clutch, free to adjust the width of strip material from 1mm to 50 mm, at high precision cutting.
3.The blade of the machine is alloy inlaid high speed wear-resistant material, sharp and long life service.
4.More humanity NC electrical control system. (You can control the start switch(button) only cut one time ,after confirming the weight in need already, then converted to a continuous strip cut) and significantly increased the electrical life ,a simple operation, more convenient to use.
5.CNC (PLC+stepper motor) type Rubber Strip Cutting Machine (Kauçuk DİLİMLEME MAKİNESİ) is available for option:rubber feeding is controlled by PLC and stepper motor,with mechanical-spring material press roller to make the rubber sheet feeding more accurate and smooth,improving the cut precision for the rubber strip.Easy operation, operator just input the desired width in the computer,the right width strip will be cut continuously.During cutting process, you can freely adjust the width of cut material as per your actual need.This CNC type Rubber Strip Cutting Machine,combining advanced CNC automatic mechanical and electric integration system,it overcome the problem for the normal strip cutting machine whose transmission parts could be wore after long time use.
Technical Specification:
|
Model |
XQ-450 |
XQ-600 |
XQ-800 |
XQ-1000 |
|
Max. feeding rubber width(mm) |
450 |
600 |
800 |
1000 |
|
Max. cutting rubber thickness(mm) |
20 |
20 |
20 |
20 |
|
Cut efficiency |
86 times/min |
86 times/min |
86 times/min |
86 times/min |
|
Cut precision |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
|
Motor power（KW） |
1.5 |
1.5 |
3 |
3 |
|
Dimension（LxWxH:mm） |
1050x700x1100 |
1150x850x1100 |
1400x1100x1200 |
1450x1240x1230 |
|
Weight(Kg) |
500 |
750 |
840 |
970 |
