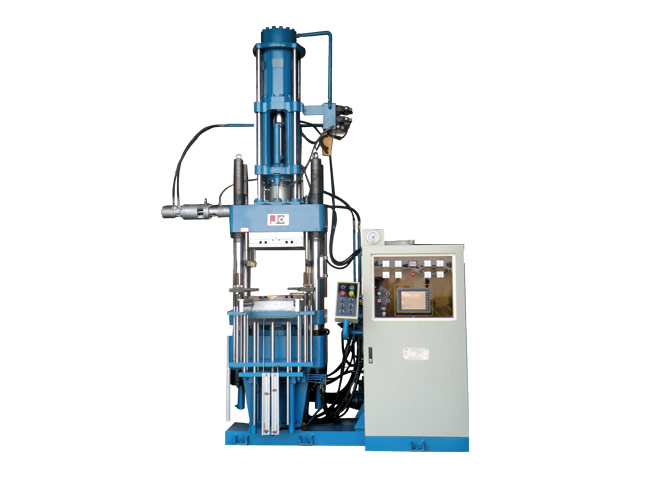

Main application field for the rubber&silicone injection molding press machine:
Rubber Injection Molding Machine (Kauçuk enjeksiyon kalıplama makinesi) is ideal for the production of various natural&synthetic rubber parts,oil & heat resistant rubber parts, silicone parts,etc.
----KAUÇUK ENJEKSİYON MAKİNESİ (YATAY TİP)
- Ergonomic low bed structure for easy opeartion
- Advanced proportional pressure&speed control from PLC
- Automated de-moulding and handling devices are optional
- Option to make silicone material
- Customized specifications are available
- Vertical/Horizontal structure with FIFO type injection systems:
- The injection device designed based on the first-in first-out principle can give priority to the injection of the plasticized rubber material first, and the metal surface in contact with the rubber material has a good cleaning function, which can effectively avoid the premature vulcanization of the rubber material and improve the final product quality.
-----CE safety standard
Technical Specification:
|
Model |
XLB-V300T |
XLB-V400T |
XLB-V500T |
|||
|
Clamping force(ton) |
200 |
300 |
400 |
500 |
||
|
Stroke(mm) |
500 |
500 |
600 |
600 |
||
|
Platen size(mm) |
600x600 |
700x700 |
700x800 |
800x850 |
||
|
Main piston diameter(mm) |
355 |
450 |
500 |
560 |
||
|
Max.platen gap(mm) |
550 |
550 |
700 |
700 |
||
|
Min. Mold thickness(mm) |
60 |
60 |
100 |
100 |
||
|
200 |
200 |
250 |
250 |
|||
|
Injection unit |
||||||
|
Injection volume (CC) |
2000 |
3000 |
4000 |
5000 |
||
|
Injection pressure (Mpa) |
220 |
220 |
205 |
205 |
||
|
Screw diameter(mm) |
45 |
45 |
55 |
55 |
||
|
Nozzle aperture(mm) |
6 |
6 |
7 |
8 |
||
|
Others |
||||||
|
System pressure (Mpa) |
21 |
21 |
21 |
21 |
||
|
Horse Power(HP) |
15 |
20 |
25 |
30 |
||
|
Heater power (KW) |
19 |
22 |
27 |
31 |
||
|
Total power(KW) |
36 |
40 |
52 |
58 |
||
|
Weight(Kg) |
7200 |
9300 |
11700 |
14700 |
||
|
Dimension(LxWxH:mm) |
3000x1500x3200 |
3900x1800x3400
|
4200x2000x3800 |
4600x2300x4200 |
||
Notes: the table only lists out the normal popular standard models, more special larger models can be customized to order.
