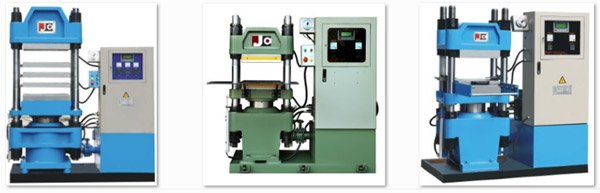

This is the normal rubber compression moulding press （Máquina para moldeo por compresión de caucho） without the auto ejectors or lifters,manually put materials in the molds and manually take out the finished rubber prats.
Workflow:
Initial state→Put rubber in mold→Manually push mold in→Start program→Fast mold closing→Slow lock,pressing→Exhaust→Curing→Mold open→Manually move mold out→Take out finished product.
|
Model |
JC-XLB63T |
JC-XLB100T |
JC-XLB150T |
JC-XLB200T |
JC-XLB250T |
JC-XLB300T |
JC-XLB350T |
JC-XLB500T |
|
Clamping force |
63T |
100T |
150T |
200T |
250T |
300T |
350T |
500T |
|
Max.sytem pressure |
21Mpa |
21Mpa |
21Mpa |
21Mpa |
21Mpa |
21Mpa |
21Mpa |
21Mpa |
|
Clamping stroke(mm) |
250 |
250 |
300 |
300 |
300 |
300 |
300 |
300 |
|
Rapid clamping speed (mm/s) |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
≥50 |
≥50 |
≥50 |
|
Platen size(mm) |
380x380
400x400 |
400x400 450x450 500x500 |
500x500 |
510x540
600x550 |
650x550 |
600x600
700x700 |
700x700 |
800x800
1000x850 |
|
Max.daylight opening(mm) |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
|
Working layers |
Single/Multi |
Single/Multi |
Single/Multi |
Single/Multi |
Single layer |
Single layer |
Single layer |
Single layer |
|
Max.temperature(℃) |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
|
Motor power(KW) |
3 |
4 |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
13 |
|
Heating power(KW) |
9.6 |
9.6 |
12 |
18.6 |
18.6 |
20.6 |
20.6 |
27.8 |
|
Dimension(LxWxH:mm) |
1670x1250 |
1750x1350 |
1810x1350 |
1920x1500 |
1950x1500 |
2150x1700 |
2300x1900 |
2700x2300 |
|
Oil tank capacity (Liters) |
200 |
250 |
280 |
320 |
330 |
350 |
380 |
400 |
Notes: the form only list out the normal standard models, more special models can be customized to order.
Rubber Compression Moulding Machine （Máquina para moldeo por compresión de caucho） is one of our main products,"Geekung" is now the famous brand in China for rubber compression moulding press machine,
made with premium components and strict QC management,featuring high quality&reliable operation.
Our rubber compression moulding press machines are being sold very popular across China,we are now also expanding our overseas market.
