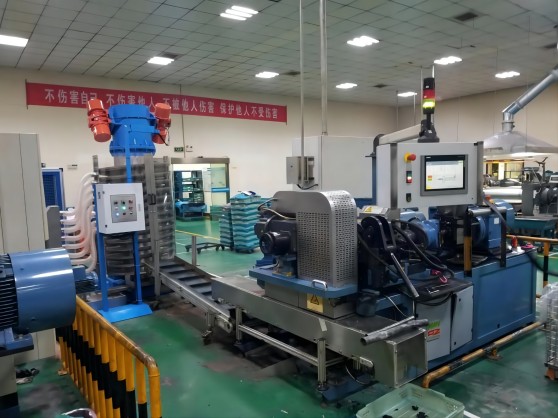

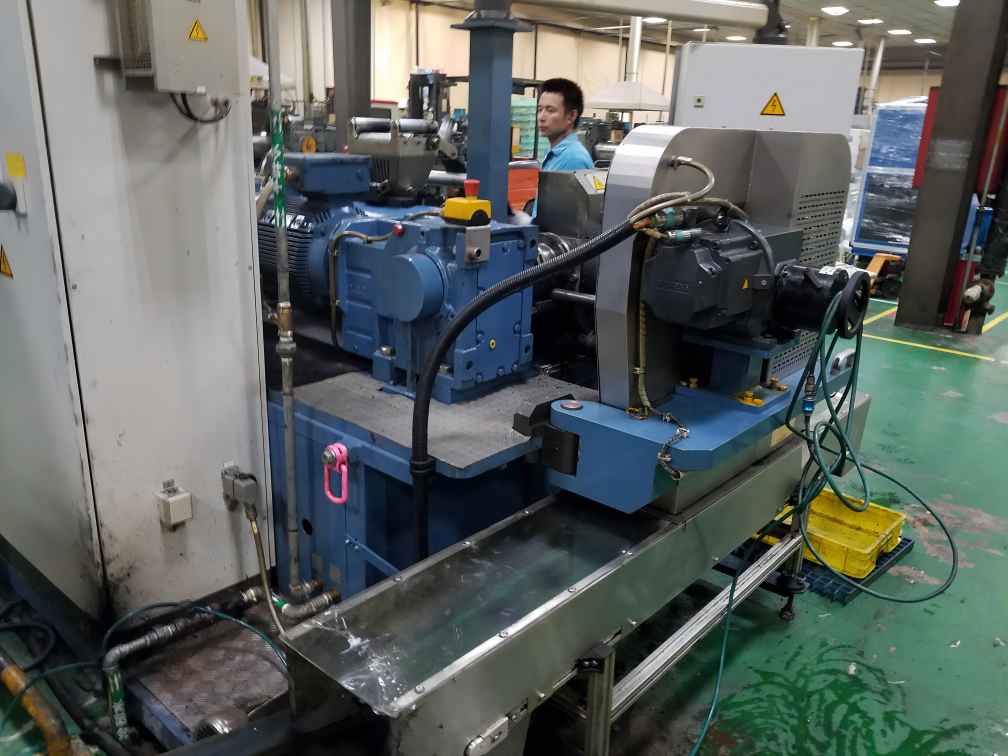

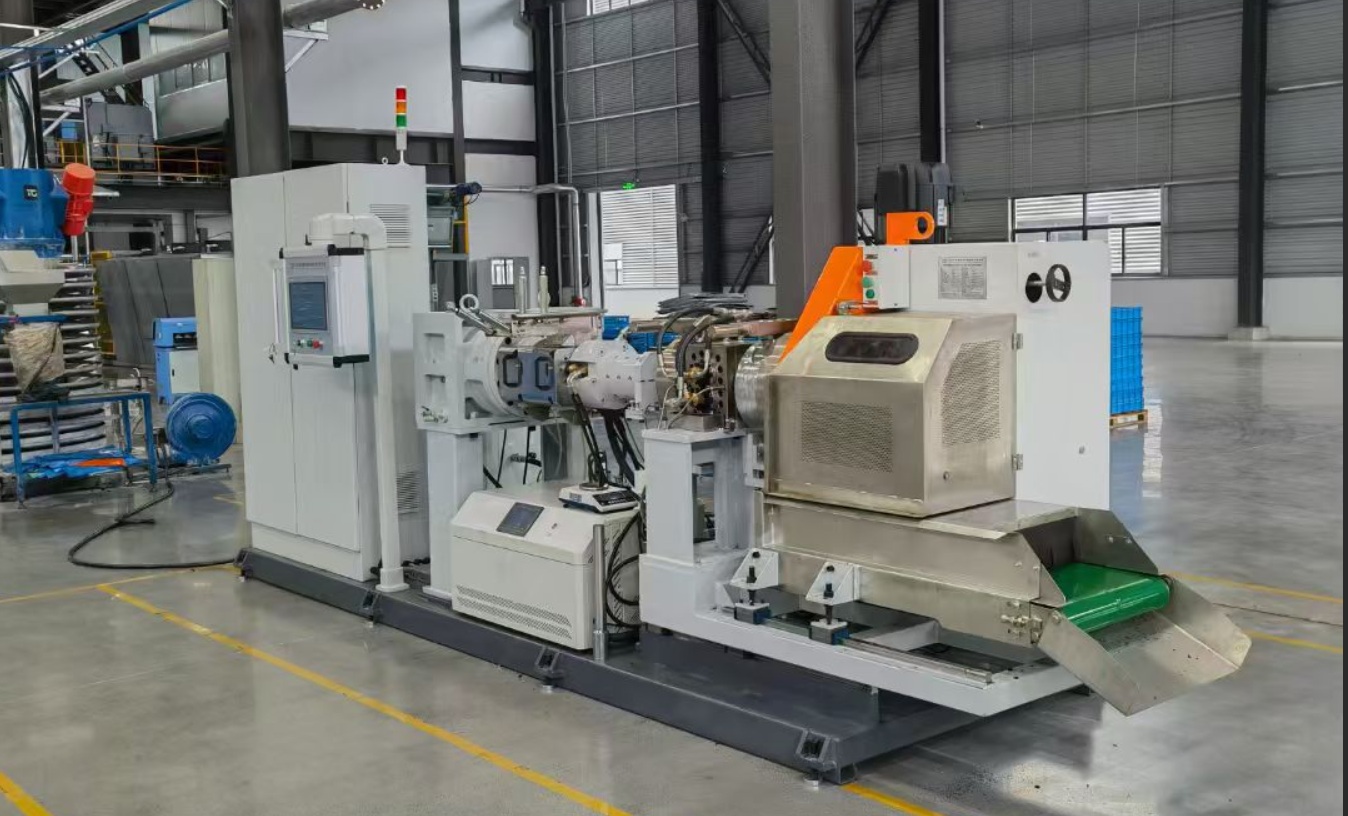

Gear Pump Cold Feed Rubber Preformer (sürekli kauçuk önceden oluşturma makinesi) is a Continuous Cold Feed Gear Pump preforming machine with high-precision and high efficiency for rubber blank production.
Technical Specification:
|
Items/Model |
Unit |
CES-50 |
CES-75 |
CES-90 |
CES-120 |
CES-150 |
|
Screw Diameter |
mm |
50 |
75 |
90 |
120 |
150 |
|
Screw L/D ratio |
|
12:1 |
12:1 |
10:1 |
8:1 |
|
|
Max.screw RPM |
RPM |
70 |
70 |
70 |
70 |
60 |
|
Max. Output Capacity |
kg/h |
50 |
120/180 |
250/380 |
700 |
1200 |
|
Gear pump speed |
RPM |
0-35 |
0-35 |
0-35 |
0-35 |
0-35 |
|
Gear pump |
CC |
20 |
50/100 |
100/150 |
315 |
500 |
|
Cutter speed |
r/min |
0.1~600 |
0.1~600 |
0.1~600 |
0~600 |
0~600 |
|
Cut weight accuracy |
± |
≤1% |
≤1% |
≤1% |
≤1% |
≤1% |
|
Total Power |
KW |
35 |
70 |
86/92 |
123 |
150 |
|
TCU temperature control zone |
Unit |
3 |
4 |
4 |
4 |
4 |
|
Dimension (L×W×H) |
m |
4.5×1.35×2.2 |
5.0×1.4×2.2 |
5.0×1.4×2.2 |
5.2×1.4×2.2 |
5.3×1.3×1.8 |
|
Weight |
ton |
4 |
5.1 |
6.2 |
7.5 |
9.0 |
