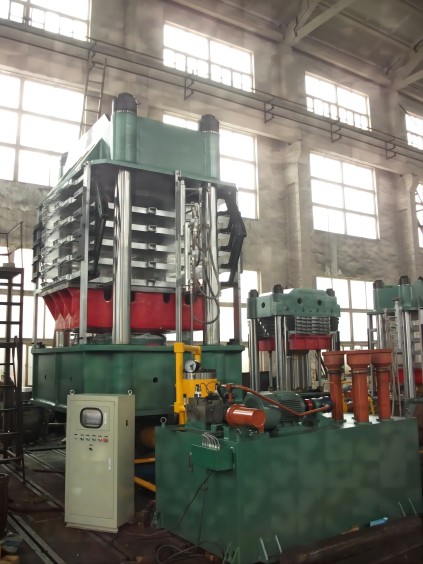

The vulcanization press machine (Вулканизирующая машина) is used for production of foam sheets of EVA, PE,EPDM SBR,etc, the foam sheets are widely used in shoe materials manufacturing, foam floor, EVA mat,EVA puzzle,thermal insulation material, luggage liner, sporting buffer material, diving dress material and life vest material, etc.
Main technical parameters:
|
No. |
Model |
Clamping force |
Platen size |
Daylight Opening |
Daylight (Layers) |
Distance between columns |
Motor power |
|
Ton |
mm |
mm |
mm |
KW |
|||
|
1 |
GKF-350T |
350 |
800*1000 |
150 |
4 |
1000 |
7.5 |
|
2 |
GKF-500T |
500 |
900*1200 |
150 |
4 |
1300 |
11 |
|
3 |
GKF-700T |
700 |
1100*1350 |
150 |
6 |
1400 |
15 |
|
4 |
GKF-900T |
900 |
1200*1500 |
150 |
6 |
1600 |
15 |
|
5 |
GKF-1000T |
1000 |
1300*1500 |
150 |
6 |
1600 |
22 |
|
6 |
GKF-1100T |
1100 |
1350*1700 |
170 |
6 |
1800 |
22 |
|
7 |
GKF-1350T |
1350 |
1350*1800 |
180 |
6 |
1800 |
22 |
|
8 |
GKF-1500T |
1600 |
1350*2000 |
180 |
6 |
1800 |
22 |
|
9 |
GKF-1600T |
1600T |
1400*2250 |
200 |
6 |
1980 |
30 |
|
10 |
GKF-1800T |
1800T |
1400*2400 |
180 |
6 |
2000 |
30 |
|
11 |
GKF-2200T |
2000T |
1400*2600 |
200 |
6 |
2000 |
37 |
Notes: the table only list out the normal standard models, more special models can be customized to order.
